When the Navistick Application is launched it provides a menu to select different Navistick Applications.

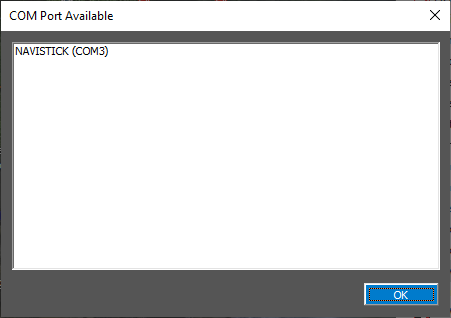

COM Ports Available

This application check to see if the Navistick has been plugged into a COM port.

If the Navistick is plugged in but does not appear it is possible that the drivers have not been installed. The is a menu option to install the drivers,

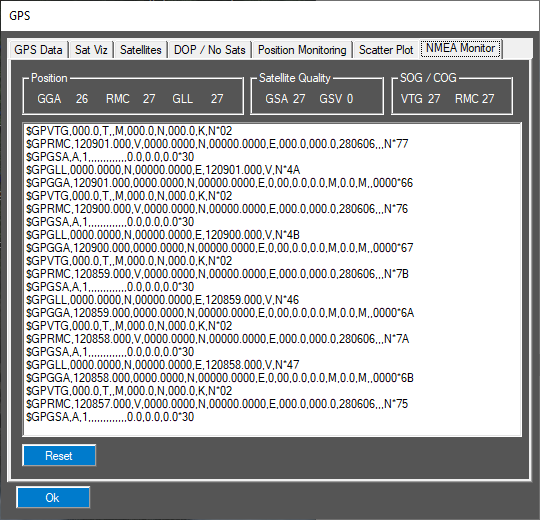

NMEA Monitor

To monitor data being receiver from the Navistick. This data can be viewed in different displayed.

  • GPS Data – Alphanumeric data including Latitude and Longitude
  • Sat Viz – Sky plot of Satellite positions
  • Satellites – Signal to Noise Ratio and Satellite Elevation
  • DOP / No Sats – Plots od DNOP and Number of Satillite verses Time
  • Position Monitoring – Latitude, Longitude and Height verses Time
  • Scatter Plot –  2D plotter of position
  • NMEA Monitor – Raw Data

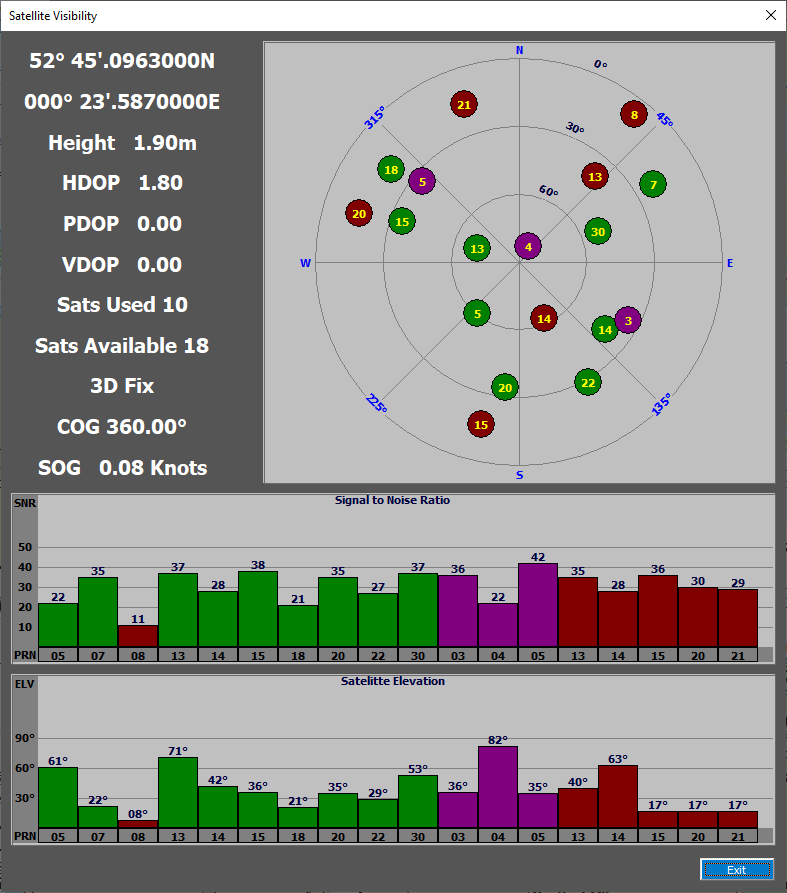

Sat Viz

Combines display of

  • Alphanumeric data including Latitude and Longitude
  • Sky plot of Satellite positions
  • Signal to Noise Ratio
  • Satellite Elevation

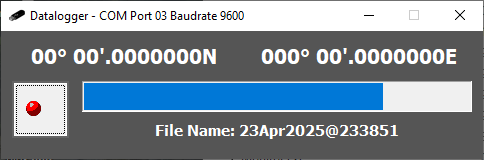

Data Logger

Application to raw data to a file.

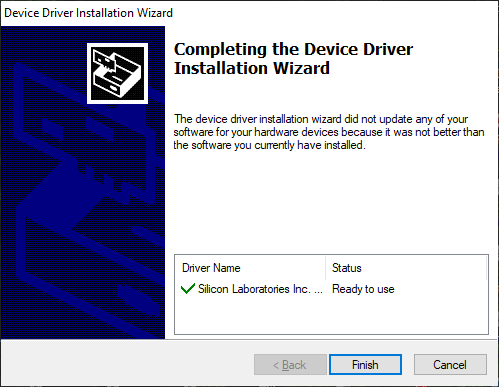

Drivers

Installation Wizard to install the Device Driver required by the Navistick. This needs to be installated before the Navistick starts communicating with the PC.
